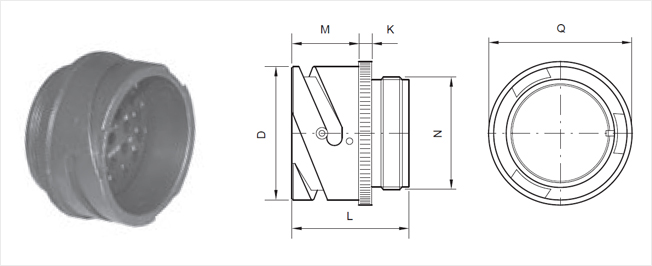

Inline socket, suitable for indoor and outdoor applications

The socket GB11、GR11、GS11

Standard material: aluminum alloy

Standard method of surface treatment: epoxy - polyurethane black

Standard inserted parts: ethyl acrylate

specification：10SL / 14SL / 16 / 16S / 18 / 20 / 22 / 24 / 28 / 32 / 36 / 40

Circular connectors GB, GR, GS

GB, GR and GS Series connectors can be installed in both indoor and outdoor applications.

GB series :
With a standard design for easy installation bayonet connection, with crimp pins for fastening the elastic insert.

GR Series:

Bayonet meet the FS standard special design, with wavy spring connection , connection with GB.

GS series :

Such as the GR series is specially designed bayonet connection with the rotation studs with steel slabs , connection with the GB series.

The basic properties of these connectors , short for :
• bayonet or threaded connection ( threaded connections only for indoor applications )
• Up to 85 -pin pin arrangement
• Cable cross-section of 0.5 to 120mm ²
• high mechanical load capacity
• aluminum shell, olive surface
• Standard surface treatment : epoxy polyurethane ( non-conductive ) , zinc - cobalt black ( conductive )
• elastic inserts : times B Tsuen acrylate ( for a higher standard of fire protection requirements Gimota )
• resistant to fuels, oils and insulating oil.
• At least 500 plug life.

Interior applications:

Connectors for indoor applications according to EN 60529 standard to meet protection class IP44. They are equipped with a rear open Composites cable clamp. This type can provide fast and low -cost assembly methods when installing the cable.

Outdoor applications :

Plug for outdoor applications based on EN 60529 standard to meet protection class IP67. They are equipped with rubber protection ring bayonet ring and dust protection cover, back cover with sealed cable clamp adapter or a heat shrink tubing adapter.
