标准材料：铝合金
标准表面处理方式：环氧-聚氨酯 黑色
标准插入件：次乙荃丙烯酸酯

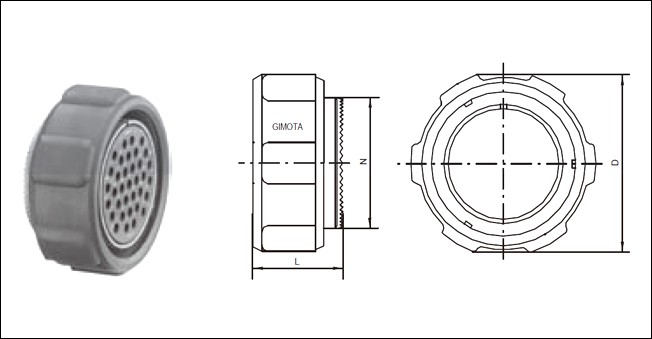

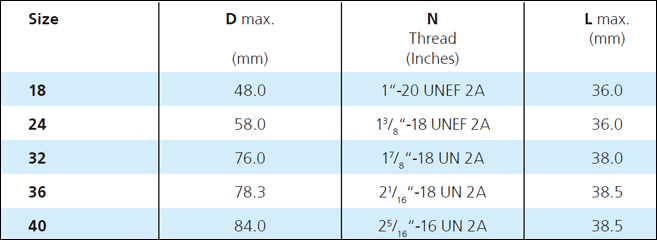

规格：18 / 24 / 32 / 36 / 40

Circular connector GB, GR, GS
GB, GR and GS series connector can be installed in the indoor and outdoor applications.
GB series:
With a bayonet connection standard design for easy mounting, belt is used to tighten plug the elasticity of the needle inserted into pieces.
GR series:
Accord with standard of FS special design, with wavy spring bayonet connection, connection with GB.
GS series:
As GR series of special design, the bayonet connection, a rotation studs, steel slabs, connections with the GB series.
The basic attributes of these connectors, in short:
Bayonet or threaded connection (threaded connections) can only be used for indoor application
Lined up to 85, inserted needle
Squared, cable cross section 0.5 to 120 mm
• high mechanical load ability
Olive, aluminum alloy shell, surface
, a standard method of surface treatment: epoxy polyurethane (not conducting), zinc, cobalt black (electrically conductive)
Elastic inserted parts: ethyl acrylate (against higher fire protection requirements Gimota standard)
• fuel, oil resistance and insulation oil etc.
• at least 500 times life of plug.
Indoor application:
Used for indoor application connector according to EN 60529 standard meet the protection grade IP44. They are fitted with a tail open composite material cable clamp. This type can be in when installing cable provides a quick and low cost way of assembly.
Outdoor applications:
Plug according to EN 60529 standard for outdoor applications meet the degree of protection IP67. They are armed with bayonet ring and dust protection cover, rubber skirts with sealing of cable clamp back cover or a adaptive heat shrinkable casing adapter.
