VNZ

 Introduction

VNZ  - straight, NPT, strain relief, metal
In railway vehicle and heavy machine construction.

Furthermore, these connectors can especially be used where damp and dry areas have to be separated.

• High-grade, specially formulated polyamide 6
• Thread made of nickel-plated brass
• Jacob PERFECT sealing insert with sealing ring made from CR / NBR
• Very high impact resistance
• With integrated strain relief and optimal ingress protection at the cable (up to IP68 / 5 bar)
• High thread and system connection strength
• Vibration-resistant connection to PMAFLEX conduits
• Easy assembly;High conduit pull-out strength
• Very good chemical properties
• Free from halogens and cadmium
• Fits both conduit profiles-fine (T) and coarse (G)
• Temperature range: -40°C to+105°C; Short-term: +160°C
• Content of delivery:
• IP68: Fitting with oval clips (OVN2), conduit seal (NVN3) and thread gasket (SVN4)

IP66/IP68

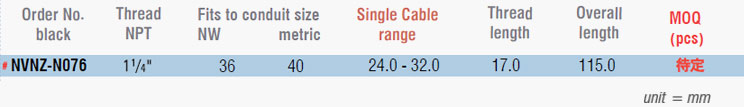

For technical specification in details, please ask for “Technical Data Sheet” DB-Nr.35003
標記爲#的産品有最小起訂量(MOQ), 待定=MOQ需與工廠確認
