TECHNICAL DATA:
Configuration
Dome nut Brass CuZn39Pb3, nickel-plated
Lamellar insert Polyamide PA6 V-2
Sealing insert TPE TPS
Gland body Brass CuZn39Pb3, nickel-plated
O-ring Nitrile rubber NBR
Connecting thread metric, as per EN 60423
Properties
• for chamfered flat cables
Temperature range -20 °C / +100 °C (dynamic)
-40 °C (static, short term)
Protection grade IP66

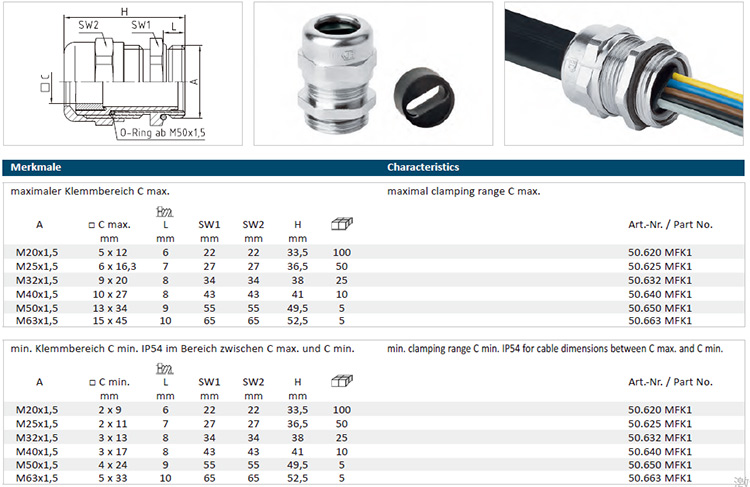

if the outer dimensions of the cable match the slot
dimensions C max. exactly (table 1),
IP54
for cable dimensions between C max. and C min.
(table 2)
Comment sealing inserts - see under accessories -
series WJ-DM xxFK1
 |
