Temperature Regulator

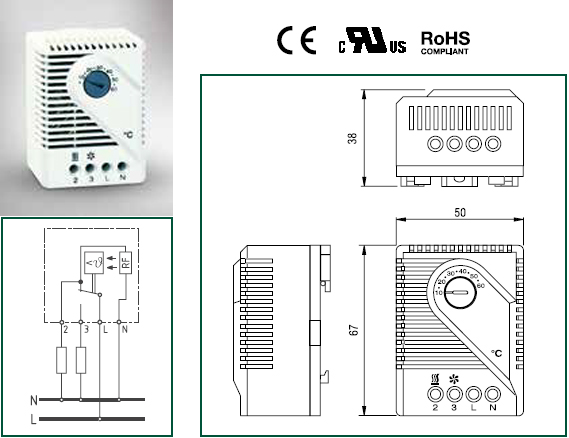

TEMPERATURE REGULATOR WI280 TECHNICAL FEATURES
Voltage: 230 V AC
Adjustment range: +5 +60°C
Contact capacity:
• close 5A/250 V AC
• open 10A/250 V AC
Connections 2,5 mm2 4 poles
Fixing: clip fixing on 35 mm DIN rails
Housing: UL 94 VO thermoplastic material
Dimensions: 67 x 50 x 38 mm.
PROTECTION RATING
IP20.

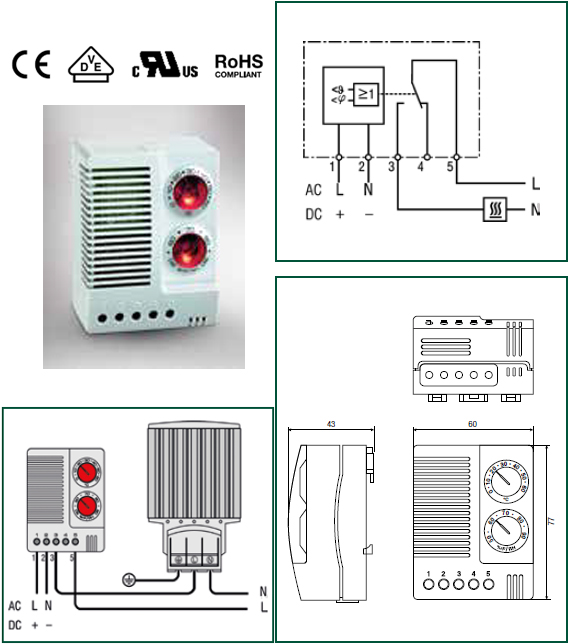

 ELECTRONIC TEMPERATURE/HUMIDITY
CONTROLLER WI290
TECHNICAL FEATURES
Voltage: 100 – 240 V AC
Temperature regulation: 0° ÷ 60°C
Intervention sensitivity: + 2°C
Respective humidity regulation: 50% ÷ 90%
Response time: about 5 sec
Contact capacity: Max: 240 V 10 A
ON indicator: LED
Fixing: clip fixing on 35 mm DIN rail
Dimensions: 60 x 77 x 43 mm
Housing: UL 94 VO thermoplastic material.
PROTECTION RATING
IP20
* Available upon request: 120V version
  |
