PEX / MEX 不銹鋼 304L 組合式控制台系列
PEX / MEX Stainless Steel 304L Modular Control Desks

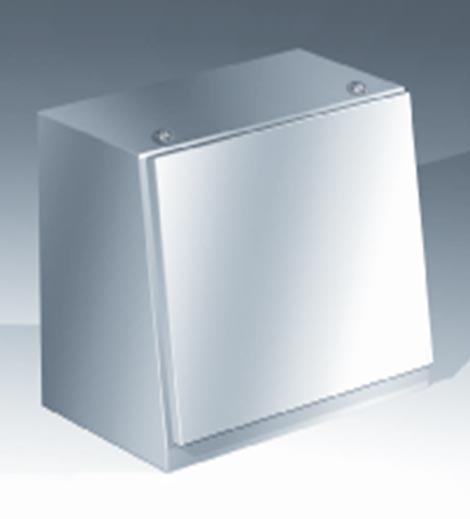

| PEX 控制台 (連鍍鋅底板) |
| Upper Part PEX |
|
| (With Sendzimir Mounting Plate) |
|
Protection 保護程度: IP55
| 尺寸(闊 x 高 x 深) |
型 號 |
備 註 |
| W x H x D (mm) |
Model No. |
Remark |
| 600 x 460 x 400 |
PEX6-01 |
Front panel 前門板 |
| 800 x 460 x 400 |
PEX8-02 |
Front panel 前門板 |
| 1200 x 460 x 400 |
PEX1-23 |
Front panel 前門板 |
| 1600 x 460 x 400 |
PEX1-64 |
Front panel 前門板 |
|
| ＊To order a stainless steel enclosure in high grade AISI 316L, add the suffix "H" to the product code. i.e. : PEX6-01H |
|
如要訂不銹鋼 316L，請在型號後面加上"H" 。例如: PEX6-01H
|
|
|

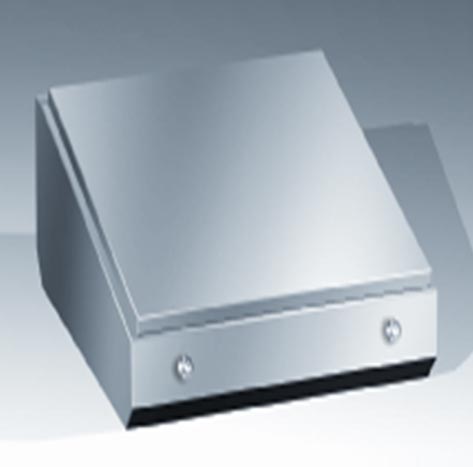

| MEX 桌面 (不連鍍鋅底板) |
|
| Shelf Unit MEX |
|
| (Without Sendzimir Mounting Plate) |
| Protection 保護程度: IP55 |
|
| 尺寸(闊 x 高 x 深) |
型 號 |
|
| W x H x D (mm) |
Model No. |
|
| 600 x 200 x 650 |
MEX6-01 |
|
| 800 x 200 x 650 |
MEX8-02 |
|
| 1200 x 200 x 650 |
MEX1-23 |
|
| 1600 x 200 x 650 |
MEX1-64 |
|
| ＊To order a stainless steel enclosure in high grade AISI 316L, add the suffix "H" to the product code. i.e. : MEX6-01H |
| 如要訂不銹鋼 316L，請在型號後面加上"H" 。例如: MEX6-01H |
|
|
|
 |
