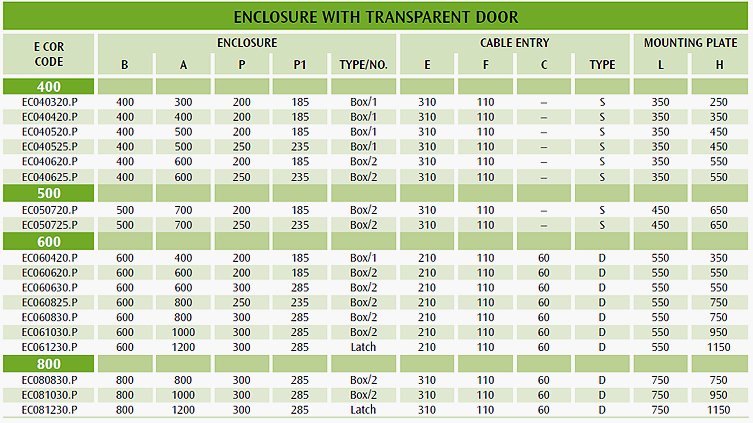

ECOR Enclosure With Transparent Door
Housing made from sheet steel with a thickness of 15/10 (12/10 for H
up to 150 mm). Reversible door made from sheet steel with a thickness
of 15/10 to 20/10 based on the dimensions, with ø 3 mm double Bit
locking system and transparent tempered glass with a thickness of 4 mm.
Mounting plate made from sendzimir steel with a thickness of 20/10
to 25/10 based on the dimensions.
Cable entry closure flange (with polyurethane gasket) made from sheet steel.
Set of screws for grounding and assembly.
PAINTING
E DUP - cathodic electrophoresis paint with epoxy resin and finish with
thermosetting epoxy-polyester powders for ETA standard electrostatic cycle.
Colour: RAL7035 textured.
PROTECTION RATING
IP66 compliant with IEC EN62208 and EN60529.
NEMA12 compliant with UL508A and UL50.
Protection rating ensured by the two-component polyurethane foam gasket
Impact resistance rating IK10 in compliant with IEC EN62208 and EN62262.

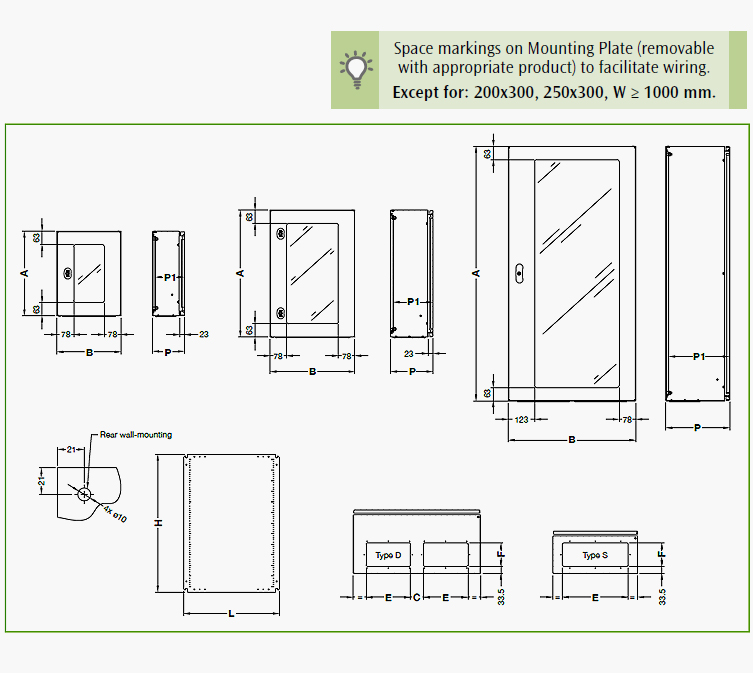

 Markings (removable with appropriate product) to facilitate wiring.
• Except for: 200x300, 250x300, W ≥ 1000 mm.

 |
