KBH 90°

 Introduction
KBH 90° - curved, elbow, metric, metal
PMAFIX Pro connectors for applications with high technical requirements and in most demanding climatic conditions.
• Fitting: Specially modified polyamide 6
• Thread: nickel-plated brass
• Sealing: crosslinked polyester elastomer
• IP69 even in dynamic applications
• Very high impact resistance,even at very low temperatures
• High thread and system connection strengths
• Easy push-in assembly for maximuminstallation reliability
• Screwdriver required for dismantling,impeding unauthorised or accidental opening
• Space-saving dismantling
• Excellent conduit pull-out strength
• Fits both conduit profiles-fine (T) and coarse (G)
• Temperature range: -50°C to+105°C; Short-term: +160°C
• Content of delivery: Fitting body with sealing element, thread seals of OR and flat gasket (SVN4)

IP66/IP68/IP69

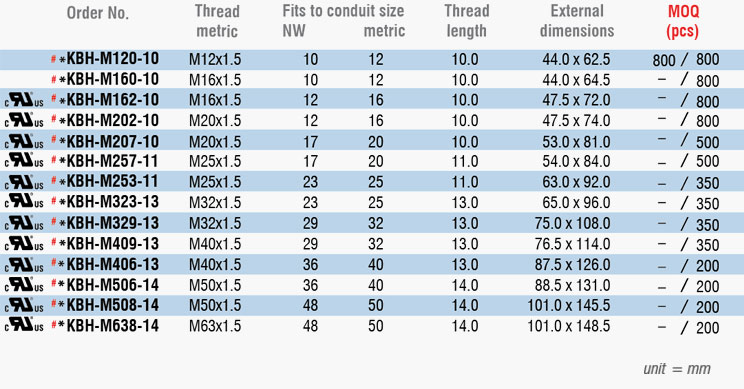

* = Replace with “N” to order black or “M” to order grey
For technical specification in details, please ask for “Technical Data Sheet” DB-Nr.32335
標記爲#的産品有最小起訂量(MOQ)
