• Specially formulated polyamide 6, nickel-plated brass thread

• Very high impact resistance

• High thread and system connection strength

• Vibration-resistant connection to PMAFLEX conduits

• Easy installation

• High conduit pull-out strength

• Very good chemical properties

• Polyamide free of halogens and cadmium

• Fits both conduit profiles-fine (T) and coarse (G)

• Temperature range: -40°C to+105°C; Short-term: +160°C

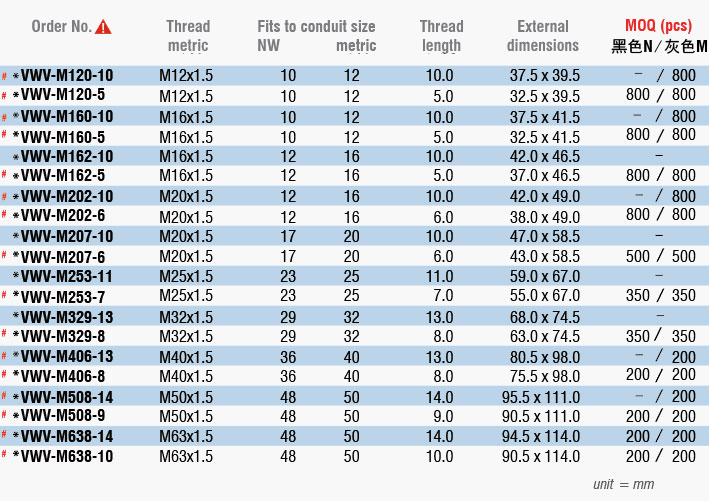

• Content of delivery:

    IP68GT:  Fitting with pre-assembled universal safety clips (AFN2) and

                  conduit seal (NVN3-GT); thread seal (SVN4 and OR)

    IP68:      Fitting with oval clips (OVN2), conduit and thread seal (NVN3, SVN4 and OR)

IP66/IP68

* = Replace with “N” to order black or “M” to order grey
For the sizes NW 17 to NW 48 curved elbows of type VB are available
!= IP68GT available. Please add “GT” prior to the thread length (for example NVNV-M120GT-10). (Functional description PMAFIX IP68GT, page 3-11/12/13).
For technical specification in details,  please ask for “Technical Data Sheet” DB-Nr.32015
