• High-grade, specially formulated polyamide 6

   thread made of nickel-plated brass

• Very high impact resistance

• Vibration-proof connection to PMAFLEX conduits

• Easy installation

• High condiut pull-out strength

• Very good chemical properties

• Polyamide free from halogens and cadmium

• Extremely high thread and system connection strength

• Fits both conduit profiles-fine (T) and coarse (G)

• Temperature range: -40°C to+105°C; Short-term: +160°C

• Content of delivery:

    IP68GT:  Fitting with pre-assembled universal safety clips (AFN2) and

                  conduit seal (NVN3-GT); thread seal (SVN4)

    IP68:      Fitting with oval clips (OVN2), conduit and thread seal

                  (NVN3, SVN4)

IP66/IP68

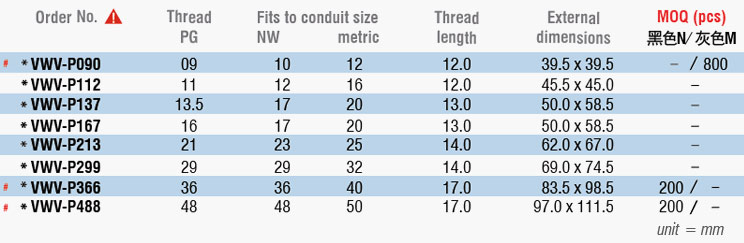

* =Replace with “N” to order black or “M” to order grey
For the sizes NW 17 to NW 48 curved elbows of type VB are available
！=IP68GT available. Please add “GT” after the order no. (Functional description PMAFIX IP68GT, page 3-11/12/13).
For technical specification in details,  please ask for “Technical Data Sheet” DB-Nr.32010
標記爲#的産品有最小起訂量（MOQ）
