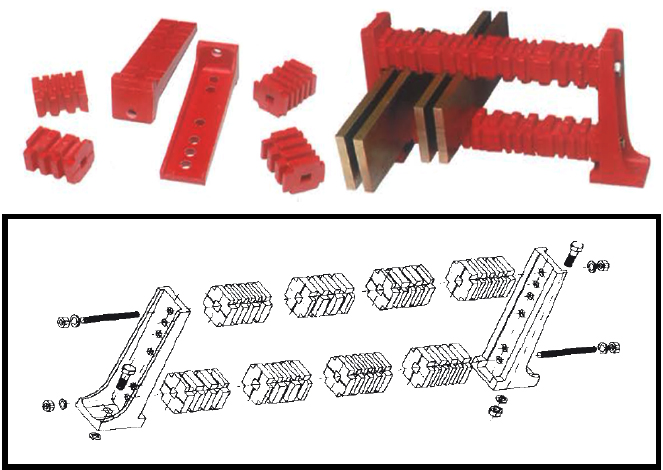

Universal Sectional Bus-Bar Holders

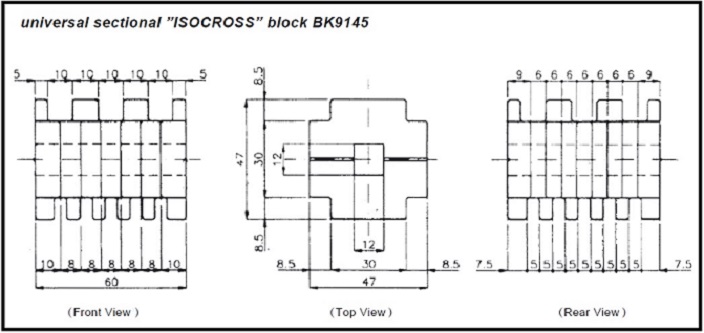

The blocks "ISOCROSS" BK9145 are produced in
polycarbonate reinforced with fiberglass for high temperatures
(120 °C), colour red RAL 3002. Free of halogens and self-extinguishing.
They allow to support bars with thickness 5 mm, 6 mm, 8 mm,
and 10 mm, by rotating them opportunely and using the desired
face.
The fixing frame (BK9178) is made of polyester reinforced
with fiberglass RF9/20 (130 °C) and allows to support bars
height 30 mm, 50 mm , 60 mm, 80 mm and 120 mm.
   C = Number of slots each phase B = Support for bars in the slots (mm) H = Min. height of the bars (mm) kN = Attraction/repulsion instantaneous electrodynamics strength between
bars in Kilo Newton ( 1 Kg = 9.8 N )
 |
